Quick Details

  • Condition: New
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: JBCZ
  • Model Number: YJ650; YJ800
  • Voltage: 380V customized
  • Power(W): 3.0KW customized
  • Dimension(L*W*H): 650*520*760
  • Weight: 140kg, YJ650: 139KG; YJ800: 145KG
  • Certification: CE ISO9001
  • Warranty: 6 month
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Tensile strength: 1.1 times of rebar
  • Certificate: CE and ISO
  • Colour: white,black
  • Quality: high
  • Dia.from: 12mm~40mm
  • Product name: Construction material metal cold forging press machine
  • Application: process rebar
  • Process rebar dia.: 16mm to 40mm
  • machine consumption parts: mould

Packaging & Delivery

Packaging Details cartons or with wooden cases or according to your request;
Construction machinery cold oil hydraulic press machine
Product Description

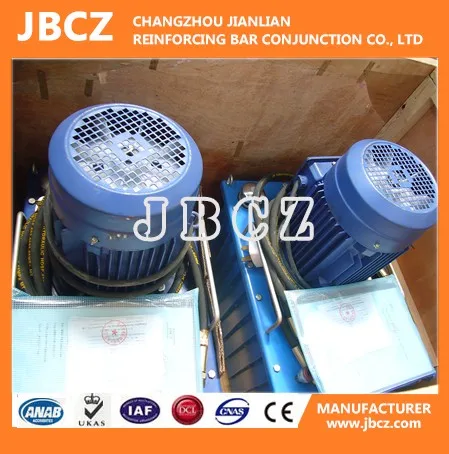

Cold extrusion press

system

1. Brand: JBCZ

2. Size: 12-40MM

3. Standard: Customized

4. Certification: ISO9001, CE, DCL, ACI-318, etc.

Product Name
Construction material metal cold forging press machine
Material
 carbon steel
Color
blue
Weight
150KG
Standard
customized
Package
wooden cases
Brand
JBCZ
Thread
screwless
Used
building industry machinery
Products Show

1.Description of Cold Extrusion Press System:

This system contains YJ650 machine, YJ800 machine and coupler.

The products meets the requirement of JGJ108-96.
1. One full set of YJ650: can process rebar whose diameter is from 16mm to 32mm.
2. One full set of YJ800: can process rebar whose diameter is from 32mm to 40mm.
3. One full set of YJ650 and PRESSURE EQUIPMENT of YJ800 can process 16mm-40mm
.

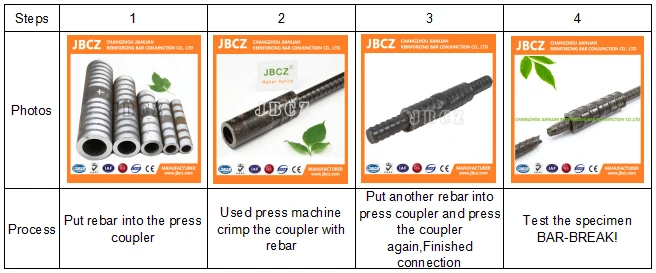

2.Working principle of cold extrusion press machine:
 It can link the rebar with sidewise extrusion by the cold extrusion press machine, make the coupler plastic deformation then occlude tightly with the steel in order to link the rebar.


3. Advantages of JBCZ cold extrusion press forging machine:
  It belongs to Grade 2 connection
(1)The tensile strength of rebar splicing is very strong, it can meet requirement of standard at home and abroad such as: China Standard(JGJ107), America Standard(UBC1997), British Standard(BSB110), French Standard(NF25-20-1), German Standard(DIN1045), ISO/WD15835(draft);

(2)Handy operation, no need skilled operator;

(3)Small need of impetus, no affected by the electric power supply in the site;

(4)Environmental protection, no need operation with open flames, no affected by the weather;

4.The parameter of standard cold extrusion press rebar couplers:

Steel bar diameter(MM)
Outer diameter of coupler (MM)
Length of coupler (MM)
16
30
130
18
34
130
20
36
120
22
40
132
25
45
150
28
50
168
32
56
192
36
63
216
40
70
240

(1).TEST: 100% BAR BREAK;

(2).THE REBAR PARAMETER IS ALSO CUSTOMIZED;

Our Service
Bridge Project
Hangzhou Bay Crossing Sea Bridge, Jiangyin Yangzi River Bridge, Jiangsu Runyang Bridge,etc.
Commercial Building Project
Burj Khalifa Tower, Oriental Pearl tower, Saraya Tower, Jinmao Tower,ect.
Public Project
Beijing Capital Airport, Qinshan Nuclear Power Plant, GaziBarotha Hydropower Station In Pakistan, North Jeddah Water Pump Station, Dubai Metro, Suzhou Gymnasium,etc.

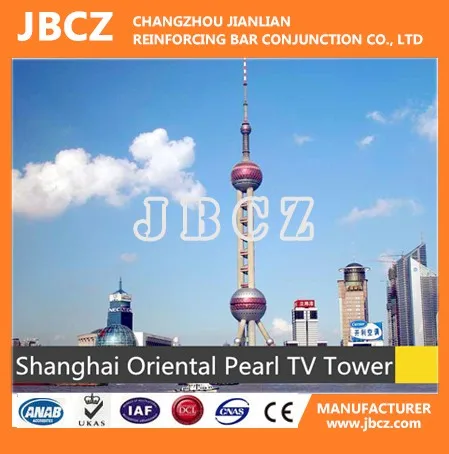

Shanghai Oriental Pearl TV Tower


Jeddah Water Pump Station

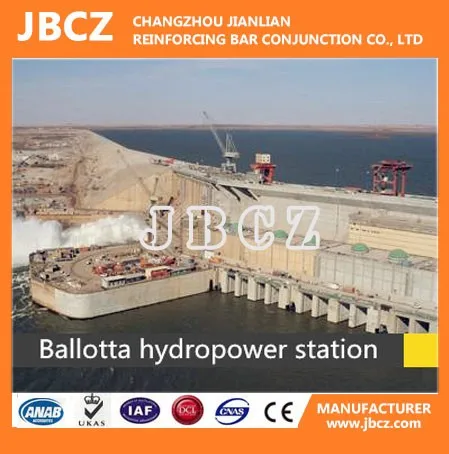

Ballotta hydropower station


Our Company

5.Why choose JBCZ

1, High strength: The strength reach Grade I, stronger than the reinforcement bar and guarantees bar break under tensile stress (tensile strength of connection point =1.1 times of connected bar). It can satisfy the requirements stipulated in the Chinese standard JGJ107-2003, JG171-2005

2, Wide working range: Adaptable for 12mm-50mm same diameter, different diameter, bending, new and old, advance covered up rebar of GB 1499, BS 4449, ASTM A615 or ASTM A706 standard.

3, High efficiency: Upset forging and threading one joint only needs no more than one minute, and handy operation and quick link.

4, Environmental protection and economy profit: No Environment pollution, can work all day, not affected by weather, economize energy source and bar material.

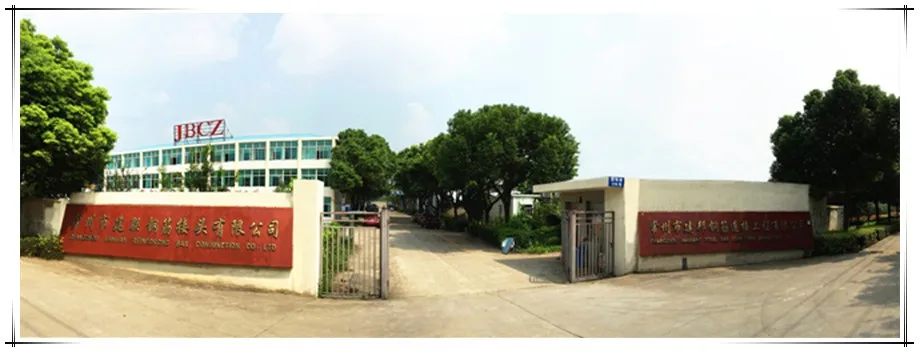

Factory

Our Factory

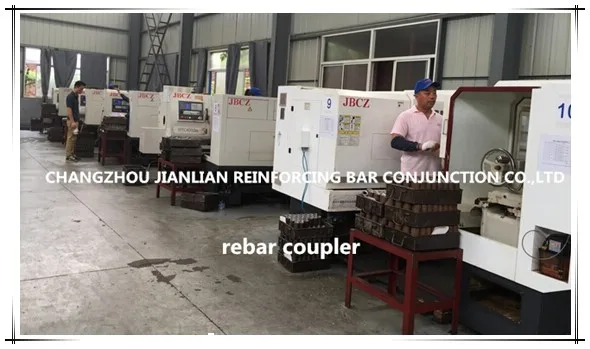

Workshop

Our Workshop

6.What makes us successful

A. Shorten your engineering period -- the two rebars can be connected within 35 seconds;

B. Catch the highest quality -- 100% broken rebars, no safty worrying, can past any safty quality test;

C. Save rebars -- give up weld and colligation rather than our connecting methods,

can save many rebars materials.

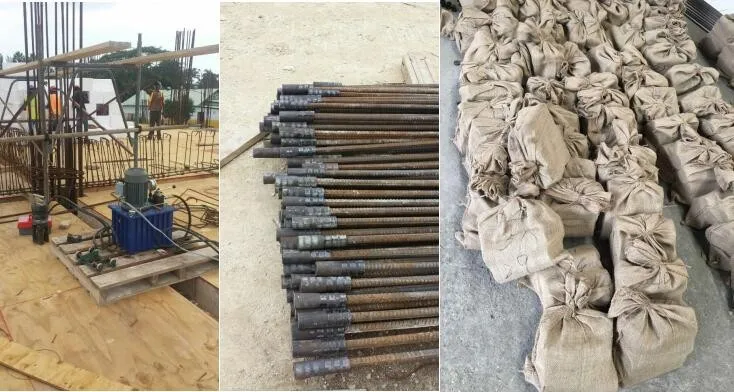

Packing & Delivery

Packing Details : Packing gunny bag, or wooden cases, or according your requirements;


Delivery Details : within 7-25 days after receiving the payment .

1. Plastic bag
2. Wooden cases
3. Container
Our Certifications

Rebar Coupler:

Our company provides comprehensive services of on-site construction and service according to customer requirements, operator training, and construction technology and equipment provision. We also have Files and DVD, both in Chinese and English, to satisfy different requirements, operator training, and construction technology and equipment provision. We also have Files and DVD, both in Chinese and English, to satisfy different requirements of customs all over the world.

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer, you are welcome to visit our factory.

Q: How long is your delivery time?

A: Generally it is within 5-10 days if the goods are in stock. or it is within 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment 100% in advance. Can communicate.
B:All the payment go through Aliababa Onetouch or Alibaba assurance payment.
