Quick Details

  • Condition: New
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: JBCZ
  • Model Number: GD-150, GZL-45
  • Voltage: 380V, customized
  • Power(W): 3kw
  • Dimension(L*W*H): 1500*660*1290
  • Weight: 610kg
  • Certification: CE ISO9001
  • Warranty: 12 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Certificate: CE, ISO9001, DCL, ACI-318, etc.
  • Model: GD-150; GZL-45
  • Tensile strength: 1.1 times of rebar
  • Material: 45#carbon steel
  • Colour: green, blue, red, etc.
  • Process field: 12~50mm
  • Sales area: 5 continents, more than 36 countries
  • Quality: high, with international certifications
  • Port: Shanghai, China
  • Name: Steel end forging upsetting threading machine with CE certificate

Packaging & Delivery

Packaging Details cartons ,wooden cases or according to your requests;
Delivery Time Shipped in 5 days after payment
Product Description

UPSET FORGING PARALLEL THREAD

SYSTEM


1. Brand: JBCZ

2. Size: 12-40MM

3. Standard: Customized

4. Certification: ISO9001, CE, DCL, KRB, etc

Product Name
Metal & Metallurgy Upsetting forging rebar threading making machine
Material
carbon steel
Color
Green, blue, white, black, etc.
Standard
Customized
Power
380V, also customized;
Grade
The UK standard , American standard (UBC1997) , ISO9001, , ACI 318, BS4449, British Standard ( BSB110), French Standard ( NF25-20-1), German Standard ( DIN1045), etc.
Brand
JBCZ
Thread
Parallel thread rolling
Package
Wooden cases
Used
Construction building industry machinery
Products Show

GD-150 Upset forging machine

Working range: Φ12mm-Φ40mm
Motor power: 4.0KW
we use GD-150 to forging the end of rebar.
The reducing coupler could link different size of steel bar whose diameter from 12mm to 40mm.
The upset forging parallel thread and Rib peeling roll stamping system all have such reducing coupler.
We have many related products: rebar splicing, rebar mechanical couplers, coupler rebar, rebar splices, bar coupler, bar splice

GZL-45 threading machine

Working range: Φ12mm-Φ40mm
Motor power: 3/2.4KW
we use the GZL-45 to threading the end of rebar.
Rebar coupler have white & black surface, it can connect rebar diameter from 12mm to 40mm.the tensile strength of rebar connector is not less than 627MPA, and the tensile strength of super coupler can be reach 800~900MPA

1.Working principle of  upsetting forging parallel thread machine

First, use GD-150 to forge the end of rebar;
Second, use GZL-45 to process thread on the forged end of rebar;
Third, use parallel thread coupler to abutting joint two threaded ends of rebar.

2.Advantages of JBCZ rebar couplers and machines:

1).Adopts upset forging parallel thread connection technology;
2). Wide working range:

      Adaptable for 12mm-40mm same diameter, different diameter, bending, new and old, advance covered up rebar of GB 1499, BS 4449, ASTM A615 or ASTM A706 standard.
3).High strength:

     Stronger than the reinforcement bar and guarantees bar break under tensile stress(tensile strength of connection point =1.1 times of connected bar's specified tensile strength). It can satisfy the requirements stipulated in the Chinese standard JGJ107-2003, JG171-2005.
4).High efficiency:

     Upset forging and threading one joint only needs no more than one minute, and handy operation and quick link.
5).  Environmental protection and economy profit:

      No envirement pullution, can work all day, not affected by weather, economize energy source and bar material.

3.The Parameter of Standard Rebar Couplers:

Steel bar diameter(MM)
Outer diameter of coupler (MM)
Length of coupler (MM)
Size of thread (MM)
12
20
30
M14*2.0
14
22
34
M16*2.0
16
26
40
M20*2.5
18
29
44
M22*2.5
20
32
48
M24*3.0
22
36
52
M27*3.0
25
40
60
M30*3.5
28
44.5
66
M33*3.5
32
50
72
M36*4.0
36
56
80
M39*4.0
40
62
90
M45*4.0

TEST: 100% BAR BREAK

Remarks:

According to Chinese standard GB 1499.2-2007,

For rebar HRB400:Tensile strength≥540Mpa,Yeild strength≥400Mpa;

For rebar HRB500:Tensile strength≥630Mpa,Yeild strength≥500Mpa.

The upset forging parallel thread connection technology can not only be used for the   connection of HRB400 rebar, but also for other rebar, such as HRB500, Gr.60, Gr.75, Gr.80, B500B,B500C, etc. Those of tensile strength is more than 700Mpa and so on.

Our Service

4.Application of JBCZ Rebar couplers and threading mahcines:

Bridge Project
Hangzhou Bay Crossing Sea Bridge,

Jiangyin Yangzi River Bridge, Jiangsu Runyang Bridge,etc.
Commercial Building Project
Burj Khalifa Tower, Oriental Pearl tower,

Saraya Tower, Jinmao Tower,ect.
Public Project
Beijing Capital Airport, Qinshan Nuclear Power Plant,

GaziBarotha Hydropower Station In Pakistan,

North Jeddah Water Pump Station, Dubai Metro,

Suzhou Gymnasium,etc.

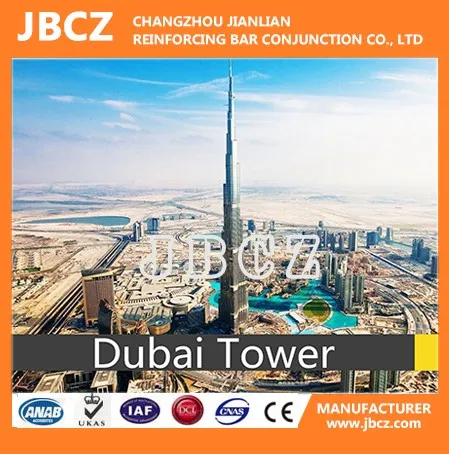

Dubai Tower

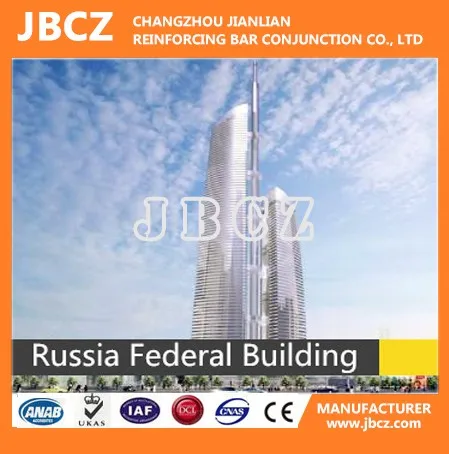

Russia Federal Building

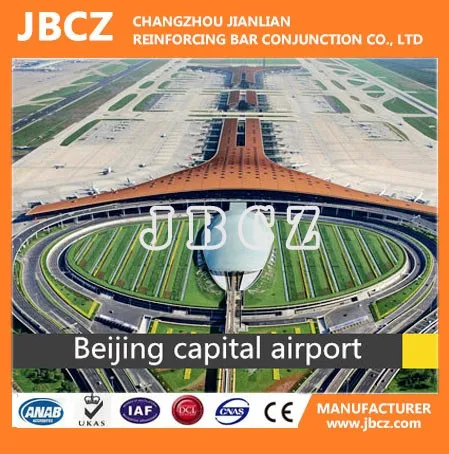

Beijing capital airport


Our Company

5.What makes us successful

A. Shorten your engineering period -- the two rebars can be connected within 35 seconds;

B. Catch the highest quality -- 100% broken rebars, no safty worrying, can past any safty quality test;

C. Save rebars -- give up weld and colligation rather than our connecting methods, can save many rebars materials.


Factory

Our Factory

Workshop

Our Workshop

6.Why choose JBCZ

1, High strength: The strength reach Grade I, stronger than the reinforcement bar and guarantees bar break under tensile stress (tensile strength of connection point =1.1 times of connected bar). It can satisfy the requirements stipulated in the Chinese standard JGJ107-2003, JG171-2005.

2, Wide working range: Adaptable for Φ12mm-Φ50mm same diameter, different diameter, bending, new and old, advance covered up rebar of GB 1499, BS 4449, ASTM A615 or ASTM A706 standard.

3, High efficiency: Upset forging and threading one joint only needs no more than one minute, and handy operation
and quick link.

4, Environmental protection and economy profit: No Environment pollution, can work all day, not affected by weather, economize energy source and bar material.


Our customers

Rebar Coupler Clients

JBCZ  products have been to 30 countries over the world :

Saudi Arabia, Mexico, Poland,Colombia, Pakistan, Qatar, UAE , Japan ,France ,New Zealand ,India , Ukraine, Sudan, Brazl, Lebanon ,South Korea, Iran, Thailand , Argentina, Kuwait,Taiwan,Russia, Dominica , Turkey, Malaysia ,Jamaica,Ethiopia ,Zambia,Philippines, China, etc.


The following is our photo wall:

Packing & Delivery

Packing Details : Rebar coupler will be packed in plastic bag first , then packed in carton box, or then packed in wooden case, or package customize. Machines are packed in wooden cases, or according your requirements;

Delivery Details : within 7-25 days after receiving the payment.

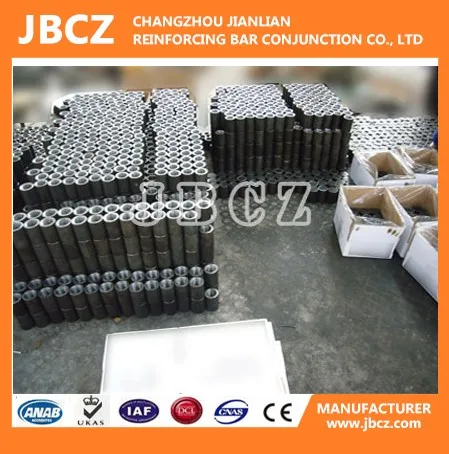

1. Checking rebar couplers
2. Carton box with piastic bag
3. Wooden cases
Our Certifications

Rebar Couplers:

With excellent production environment, good technical power and completed devices, the company has an annual production capacity of 6 million Ф12-Ф40 parallel thread rebar couplers and 500 sets of machinary, which could well meet major and key construction project need.

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer, you are welcome to visit our factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment 100% in advance. Can communicate.
B: All the payment go through Aliababa Onetouch or Alibaba assurance payment.


If you have another question, pls feel free to contact us as below:
